Signage Solutions EcoDesign

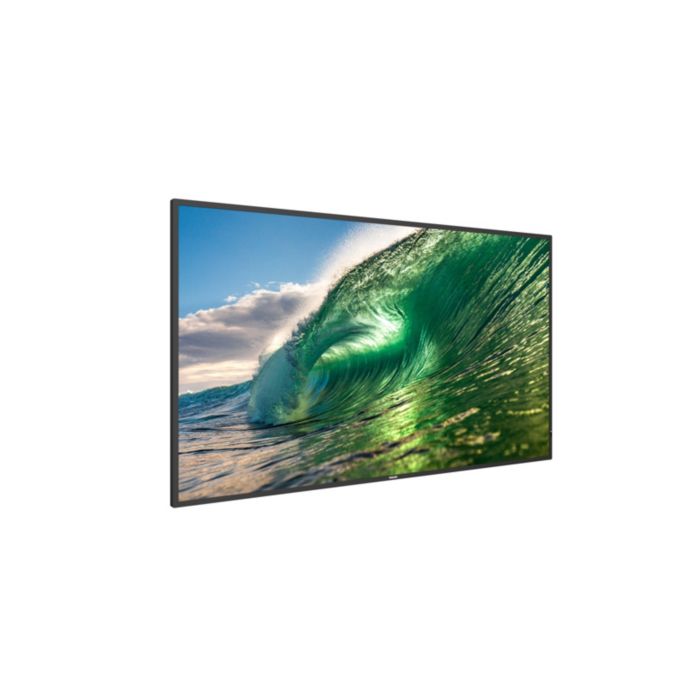

50BDL3650QE/00

Display better

Engage your audience with this environmentally conscious 4K Ultra HD digital display. Delivering uncompromised 4K UHD performance while running on half the power compared to other market models, with the very latest PPDS EcoDesign.

See all benefits

Signage Solutions EcoDesign

Similar products

See all Q-Line Series

Display better

EcoDesign 18/7 display

  • 50"
  • Direct LED Backlight
  • Ultra HD

100% recycled and recyclable packaging

Designed with manufacturing processes, physical features, materials, packaging, and built-in software that are kinder to the environment and deliver better energy efficiency, the Philips Signage 3650 EcoDesign display is designed to operate using less than half the power of its counterparts, while still delivering the same unrivalled performance.

Android SoC processor. Native and web apps

Powered by our Android 10 SoC platform, these hard-working displays are optimised for native Android apps, and you can install web apps directly onto the display too. Flexible and secure, ensuring display specs stay up to the moment for longer.

Connect and control your content via the cloud

Connect and control your content via the cloud with the integrated HTML5 browser. Using the Chromium based browser, design your content online and connect a single display, or your complete network. Show content in both landscape and portrait mode, with full HD resolution. Simply connect the display to the internet using the optional CRD22 Wifi module or via LAN, and enjoy your own created playlists.

EPEAT Silver Climate+ certified

Recognised by and registered with EPEAT with a Silver Climate+ Ecolabel, the Philips Signage 3650 EcoDesign meets the robust set of criteria laid out by the world's premier ecolabel for electronics.

FailOver. Ensure content is always running

Critical for demanding commercial applications, FailOver is a revolutionary technology that automatically plays back-up content on screen in the unlikely event of an input source or application failure. Simply select a primary input connection and a FailOver connection and you are ready for instant content protection.

Optional Interact for wireless screen share

Wirelessly screen share using your existing Wifi network to instantly and securely connect devices, or use our optional HDMI Interact dongle to cast directly onto the screen without connecting into the secured network.

PPDS Wave ready for remote management

Unlock the power, versatility and intelligence inside your Philips Signage 3650 EcoDesign displays remotely with Wave. This evolutionary cloud platform puts you fully in control, with simplified installation and set-up, monitoring and controlling displays, upgrading firmware, managing playlists and setting power schedules. Saving you time, energy, and environmental impact.

Wifi and Bluetooth 5.2 via optional module

Easily schedule content to play from USB or from internal memory. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback is done.

Technical Specifications

  • Picture/Display

    Diagonal screen size (metric)
    125.7  cm
    Diagonal screen size (inch)
    49.5  inch
    Aspect ratio
    16:9
    Panel resolution
    3840 x 2160
    Pixel pitch
    0.2854 x 0.2854 mm
    Optimum resolution
    3840 x 2160 @ 60 Hz
    Brightness
    350  cd/m²
    Display colors
    1.06 Billion
    Contrast ratio (typical)
    4000:1
    Dynamic contrast ratio
    500,000:1
    Response time (typical)
    8  ms
    Viewing angle (horizontal)
    178  degree
    Viewing angle (vertical)
    178  degree
    Picture enhancement
    • 3/2 - 2/2 motion pull down
    • Dynamic contrast enhancement
    • Motion compens. deinterlacing
    • Progressive scan
    Panel technology
    VA
    Operating system
    Android 10
  • Connectivity

    Audio output
    3.5mm jack
    Video input
    • HDMI 2.0 (x2)
    • DVI-I (x 1)
    • USB 2.0 (x2)
    • USB 3.0 (x2)
    Audio input
    3.5 mm jack
    Other connections
    • micro SD
    • OPS
    External control
    • RJ45
    • RS232C (in/out) 2.5 mm jack
    • IR (in/out) 3.5 mm jack
    Optional WiFi functionality
    CRD22 wifi dongle
  • Convenience

    Placement
    • Landscape (18/7)
    • Portrait (18/7)
    Tiled Matrix
    Up to 15 x 15
    Keyboard control
    • Lockable
    • Hidden
    Remote control signal
    Lockable
    Signal loop through
    • RS232
    • IR Loopthrough
    Energy saving functions
    Smart Power
    Network controllable
    • RS232
    • RJ45
  • Sound

    Built-in speakers
    2 x 10W RMS
  • Power

    Mains power
    100 - 240V~, 50/60Hz
    Consumption (Typical)
    56  W
    Consumption (Max)
    103 W
    Standby power consumption
    <0.5W
    Power Saving Features
    Smart Power
    Energy Label Class
    E
  • Supported Display Resolution

    Computer formats
    • 832 x 624, 75Hz
    • 1024 x 768, 60, 70, 75Hz
    • 1152 x 864, 75Hz
    • 1152 x 870, 75Hz
    • 1280 x 1024, 60Hz
    • 1280 x 720, 60Hz
    • 1280 x 800, 60Hz
    • 1440 x 900, 60Hz
    • 1600 x 1200, 60Hz
    • 1680 x 1050, 60Hz
    • 1920 x 1080, 60Hz
    • 3840 x 2160, 24,25,30,60Hz
    • 640 x 480, 60, 67, 72, 75Hz
    • 720 x 400, 70Hz
    • 800 x 600, 56, 60, 72, 75Hz
    Video formats
    • 1080p, 50, 60Hz
    • 1080i, 50, 60Hz
    • 3840 x 2160p,24,25,30,60Hz
    • 480i, 60Hz
    • 480p, 60Hz
    • 720p, 50,60 Hz
  • Dimensions

    Set Width
    1128.4  mm
    Product weight
    14.25  kg
    Set Height
    649.0  mm
    Set Depth
    63.5  mm
    Set Width (inch)
    44.43  inch
    Set Height (inch)
    25.55  inch
    Wall Mount
    400mm x 400mm , M6
    Set Depth (inch)
    2.50  inch
    Bezel width
    14.9 mm (Even bezel)
    Product weight (lb)
    31.42  lb
  • Operating conditions

    Altitude
    0 ~ 3000 m
    Temperature range (operation)
    0 ~ 40  °C
    MTBF
    30,000  hour(s)
    Temperature range (storage)
    -20 ~ 60  °C
    Humidity range (operation)[RH]
    20 ~ 80% RH (No condensation)
    Humidity range (storage) [RH]
    5 ~ 95% RH (No condensation)
  • Multimedia Applications

    USB Playback Video
    • H.263
    • H.264
    • H.265
    • MPEG1/2
    • MPEG4
    • VP8
    • VP9
    USB Playback Picture
    • JPEG
    • BMP
    • PNG
    USB Playback Audio
    • AAC
    • HEAAC
    • MPEG
  • Internal Player

    CPU
    • Dual core cortex A53 1.1G Hz
    • Dual core cortex A73 1.15G Hz
    • Quad Core Cortex A55
    GPU
    G52 MC1
    Memory
    • 16GB
    • 3GB DDR
  • Accessories

    Included Accessories
    • IR sensor cable (1.8 m) (x1)
    • RS232 daisy-chain cable
    • Philips logo (x1)
    • AC Power Cord
    • AC Switch Cover
    • Cable clip (x2)
    • Quick start guide
    • RS232 cable
    • USB Cover (x1)
  • Miscellaneous

    On-Screen Display Languages
    • English
    • French
    • German
    • Italian
    • Polish
    • Russian
    • Spanish
    • Turkish
    • Simplified Chinese
    • Traditional Chinese
    • Arabic
    • Japanese
    Warranty
    3 year warranty
    Regulatory approvals
    • CE
    • CB
    • BSMI
    • FCC, Class A
    • VCCI
    • J-Moss
    • ETL
    • RoHS
