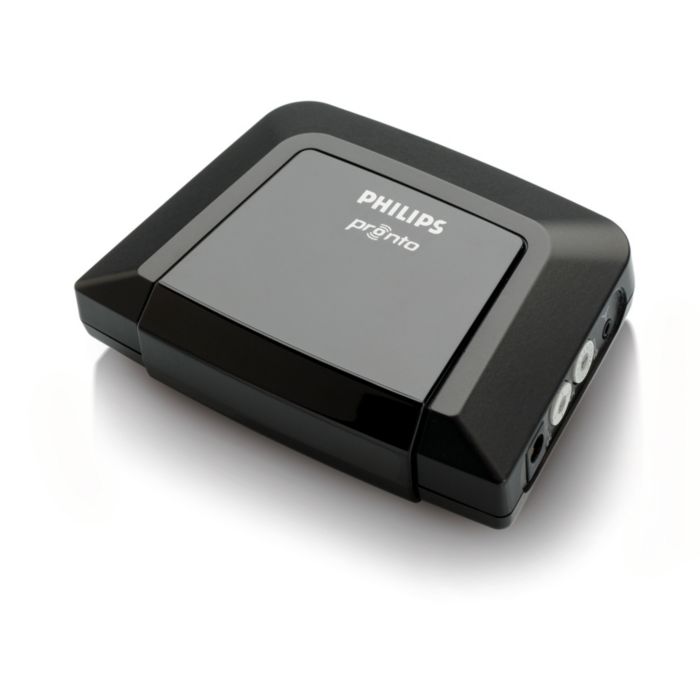

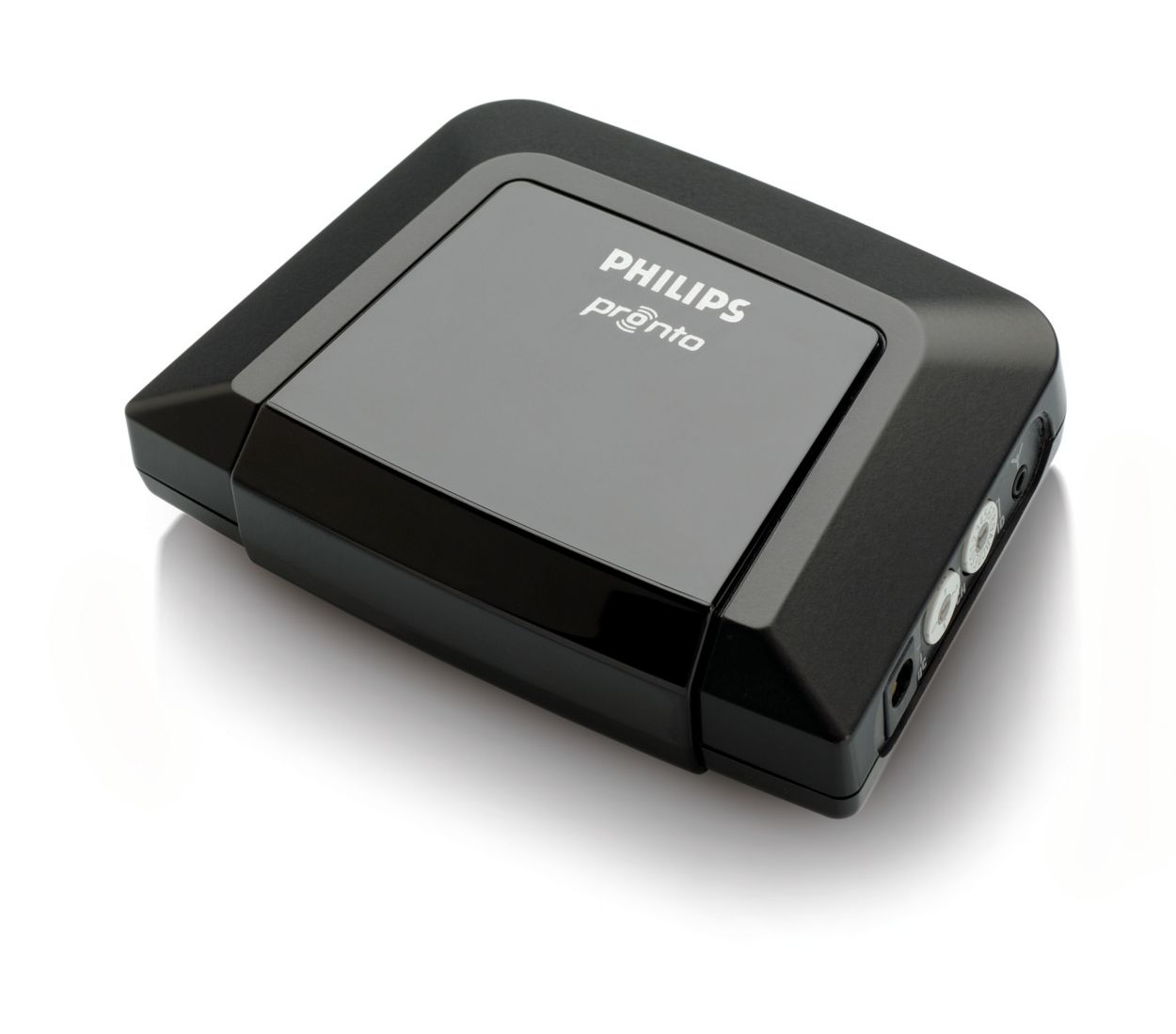

Pronto RF extender

SBCLI910/00

Extended range, reliable control

Easy to install RF extender for Pronto and ProntoPro guarantees virtually interference-free operation in multi-room configurations or non-line-of-sight environments.

Unfortunately this product is no longer available

Pronto RF extender

Extended range, reliable control

Optional IR extension module controls hidden equipment

An infrared extension module allows you to control traditional infrared equipment over a radio frequency network.

Radio frequency works through walls and from other rooms

A radio technology that allows you to control components not in direct line-of-sight, such as through walls or other obstacles. There are two types of RF used in remote controls: RF to component, and RF to infrared.

Adjustable antenna to reliably position RF extender

A separate adjustable antenna determines the most reliable position of an RF extender and therefore enables virtually interference-free operation of multi-room systems or devices in concealed environments. The antenna has a built-in interference indicator that blinks when detecting an other RF device or other interference source (e.g. microwave oven). The harder the indicator blinks, the less reliable the position of the antenna.

Indicator detecting interference sources to an RF signal

An interference indicator is a red blinking light that indicates the presence of interference sources in the home, that can interfere with the operation of an RF extender. The indicator is built into an antenna, and starts blinking as soon as the antenna picks up interference from RF devices, besides the RF extender, or other sources e.g microwave oven. The harder the light blinks, the less reliable the antenna is positioned, therefore, the less reliable the RF extender will work.

Technical Specifications

  • Connectivity

    IR emitter connectors
    4
  • Convenience

    Error indication
    Yes
  • Power

    Mains power
    230V (+/-10/-15%)/50Hz
  • Accessories

    AC/DC Adaptor
    12V DC 400mA
    Printed User Guide
    Yes
    Dual IR emitter wires
    4
  • Dimensions

    Master carton quantity
    1
    Product depth
    79  mm
    Master carton weight
    0.84  kg
    Product width
    110  mm
    Product height
    30  mm
    Product weight
    0.060  kg
    Temperature range (operation)
    0°C to 50°C
  • Infrared Capabilities

    Transmitting LEDs
    4
    IR emitter connectors
    4
  • RF Capabilities

    Adresses (ID's)
    16
    Channels
    4
    Communication
    1-way
    Frequency (MHz)
    433
