Other items in the box
- AC/DC adaptor
- Printed user guide
- Single IR emitter wires
- Warranty card

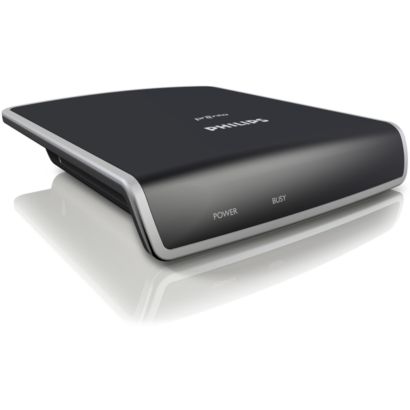

Pronto Network Extender
RFX9200/79
Designed by installers, made by Philips
The TSU9200 can be adapted to full non-line-of-site control via ultra-reliable digital RF. The dedicated extender RFX9200 features addressable IR ports. Its sleek subtle design is suitable for wall and cabinet placement.
Unfortunately this product is no longer available
This product qualifies for VAT relief
If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.
Pronto Network Extender
Similar products
See all Universal remote controlsAdvanced connectivity: addressable IR ports
Addressable IR ports enable control of the same type of devices in a rack independently (by the same extender). Typically this is the case with multiple set-top boxes to distribute content throughout the house. Every device is asigned its own dedicated IR port. As a result the device will only receive the IR codes that are intended for this device and not for any other. Without addressable IR codes, every device will always receive all sent-out IR codes.
Unique Pronto protocol guarantees best-in-class control
The Pronto system uses standard WiFi for wireless control but has added an additional smart protocol to guarantee a reliable and timely execution of IR codes and macros.
Smart feedback provides immediate system information
The smart 2-way Pronto protocol regulates the commands that are sent from the Pronto control panel to the extenders. Each extender will acknowledge the execution and the user will be informed in case a command cannot be executed.
Emits IR codes up to 1MHz
The powerful IR-circuit is capable of transmitting virtually any IR code. Where many remote control systems are limited to 125 kHz, the Pronto extenders can send IR-frequencies to up to 1 MHz.
Out-of-the-box stand-alone mode enables instant use
The extender works out of the box in stand alone mode and requires no special settings. When encryption or fixed IP is desired, the internal web browser is available via a PC or laptop.
Compact table-top housing
The compact and light-weight housing will fit anywhere and can easily be hidden behind equipment.
Technical Specifications
-
Connectivity
- IR emitter connectors
- 4
-
Accessories
- AC/DC Adaptor
- Yes
- Printed User Guide
- Yes
- Warranty Card
- Yes
- Single IR emitter wires
- 4
-
Infrared Capabilities
- Carrier frequency range
- 30k - 100kHz + 455kHz
- Addressable IR output
- Adjustable IR output level
-
RF Capabilities
- Adresses (ID's)
- 16
- Frequency (GHz)
- 2.4
